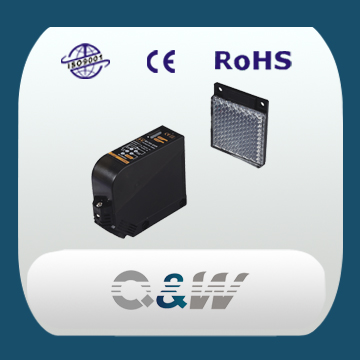

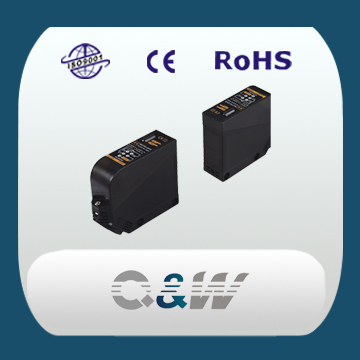

G74-3

Classification: Sensor - Photoelectric Switch
   MPDEL          G74-3C15JC     G74-3B5JC     G74-3A70JC










  Detect distance            15m          0.1-5m       700mm
  Detect target   Opaque materials of Min 16mm   Opaque materials of Min 60mm  Transpqrent, translucent, opaque materials
  Hysterisis       ------------       ---------------   20% Max, at detecting distance
  Response time         Max 20mS          Max 20mS         Max 20mS
  Power voltage     DC 10-30V        DC 10-30V         DC 10-30V
  Sensitivity      ------------         ----------------    Adjustable by VR
  Operating mode      Light on/off select by slide switch       Light on/off select by slide switch      Light on/off select by slide switch
  Control output       Relay output
  Protection          IP54            IP54         IP54
