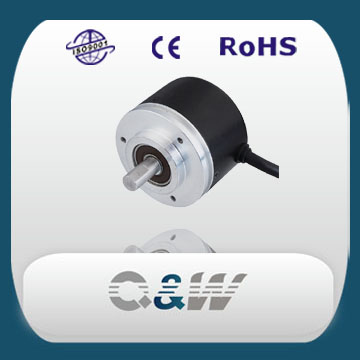

SP50/8 Series
SP50/8 Series
1.Fuction and use
Outer diameter is 50mm, thinkness is only 38, axes diameter is 8mm.
Micromation and precision type, steady capability.
Many output circuit can select, out form is socket, cable side out and back out.
Apply for industry machine, automatic control and so on.
2.Type instruction
|
SP |
50 |
/ |
8 |
- |
100 |
BZ |
- |
8~30 |
F |
G |
2 |
|
Basis type |
Main diameter 50mm |
|
axes diameter 8mm |
|
pulse count |
two-phase with positive base point |
|
power voltage: +8v~+30v |
Out circuit form F: push-pull output |
Out form G:cable side out |
Cable length 2m |
Pusle/ revolution (note: the plastic code plate with vibration resist and inrush-resist, metal code wheel with high temperture resist, and glass code wheel with high precisiom) :
10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 200 2048 2400 2500 3000 3600 or according customer request.
3.Electric parameter
|
Output circuit |
Driver L, H |
C, E, F |
Driver T |
|
Power voltage |
+5v ±5% |
+5V or +8V~30V |
+5V or +8V~30V |
|
Current consumption |
≤150mA |
≤60mA |
≤150mA |
|
Allowable load |
20mA |
30mA |
20mA |
|
Signal high waveform |
≥2.5V |
≥VCC*70%V |
≥VCC*70%V |
|
Signal low waveform |
≤0.5V |
≤0.5V |
≤0.5V |
|
Rise / fall time |
≤100ns |
≤1us |
≤100ns |
|
Response frequency |
150KHz |
150KHz |
150KHz |
4. Machine parameter
|
Radial load |
≤40N |
|
Axial load |
≤20N |
|
Start torque |
≤3*10-3N.m |
|
Tiptop rotate speed |
6000r/min |
|
Running inertia |
30g/cm² |
|
Allowable acceleration |
1*104rad/S² |
|
Weight |
About 0.2kg |
5.Enviroment parameter
|
Concussion resist |
1000m/S²， 6ms |
|
Vibration resist |
100m/s²，10~200HZ |
|
Working temperature |
20°C ~ 50°C |
|
Storing temperature |
-20°C~ + 80°C |
|
Relatively humidity |
≤RH85% No incing |
|
Protect grade |
IP50 |
6.Wire List
Output signal
+V
0V
SIG A
SIG B
SIG Z
SIG A
SIG B
SIG Z
G
CEF Type
Cable color
red
black
green
white
yellow
-
-
-
Copper screen
Seven core socket
1
4
3
5
2
7
LHT Type
Cable color
red
black
green
white
yellow
brown
grey
orange
Copper screen
Seven core socket
1
4
5
3
2
7
6
8
9
Cautions: (1) signals connect according to the cable color in the list, shield line had connected with encoder shell actual connection connect by encoder mark.
(2) stardard length of output cable is 1m, the longest could extend to 50m.
