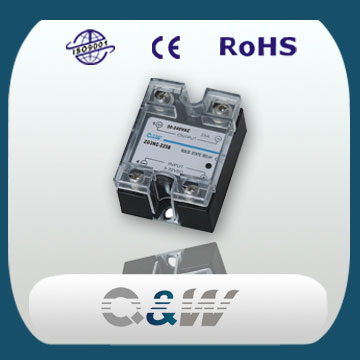

ZG3NC black shell DC-DC type
Classification: Solid State Relay - Single-Phase Solid State Relay
ZG3NC-50 B
ZG3NC-50B
|
Load Voltage |
110VDC |
|
Load Current |
10A,15A,20A,25A,30A,40A,50A,60A,75A,80A |
|
Control Voltage |
3-32VDC |
|
Control Current |
5-25MA |
|
〇n Voltage |
≤2.5VDC |
|
〇ff-state Leakage Current |
≤2mA |
|
Time Off |
≤10MS |
|
Dielectric Strength |
2500VAC |
|
Insulation Resistance |
100MΩ/500VDC |
|
Ambient Temperature |
-25~+75℃ |
|
Mounting Methods |
bolt |
|
The work instructions |
LED |
|
Weight |
90G（10A,25A）135G(40Aor more) |
