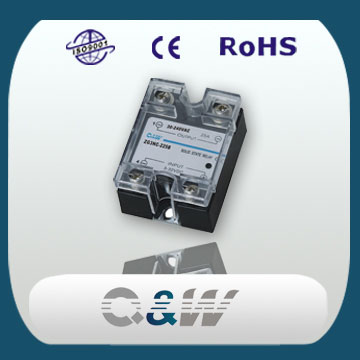

ZG3NC black shell DC-AC with enhancement type
Classification: Solid State Relay - Single-Phase Solid State Relay
ZG3NC-6B
ZG3NC-6B
|
Load Voltage |
660VDC |
|
Load Current |
10A,15A,20A,25A,30A,40A,50A,60A,75A,80A,90A 110A,120A |
|
Control Voltage |
3-32VDC |
|
Control Current |
3-25Ma |
|
〇n Voltage |
≤1.5VAC |
|
〇ff-state Leakage Current |
≤4mA |
|
Time Off |
≤10ms |
|
Dielectric Strength |
2500VAC |
|
Insulation Resistance |
100MΩ/500VDC |
|
Ambient Temperature |
-25~+75℃ |
|
Mounting Methods |
bolt |
|
The work instructions |
LED |
|
Weight |
135G |
