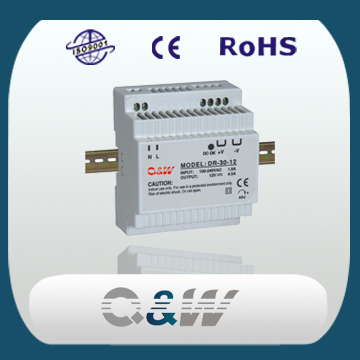

45W Single group rail type

Model Number

Output

Tol

RCN

Effi

Power

DR-45-5

5.0V0.0-5.0A

± 2%

100mV

72%

45W

DR-45-12

12V0.0~3.5A

± 1%

200mV

77%

45W

DR-45-15

15V0.0~2.8A

± 1%

240mV

77%

42W

DR-45-24

24V0.0~2.0A

± 1%

480mV

80%

48W

Universal AC input / Full range

nstalled on Din Rail TS35/7 5 or 15

Protections: Short circuit /Over voltage/Over load

Approvals：CE

LED showing the work of state

Cooling by free air convection

100% full load burn-in test

2 years warranty

AC Input voltage range：85~264VAC,47-63Hz,120~370VDC

AC inrush current: Cold start.27A at 115VAC36Aat 230VAC

Dc adjustment range：± 10% rated output voltage

Over load protection：105%-150% rated output voltage

Over voltage protection：115%~135% rated output voltage

Withstand voltage：1/P：3KVAC、1/P-FG：1.5KVAC、

Working temperature：0℃~45℃

Connection：1P：2 poles – O/P 4poles screw DIN terminal

Packing:0.27 kg/ pc ,20PCS/165KG/1.1CURT
