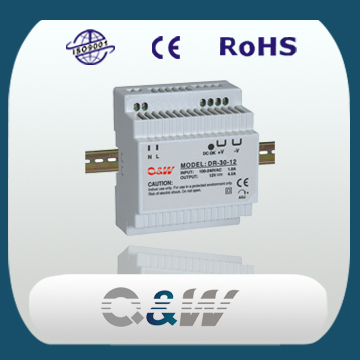

30W Single Group Rail Type

Moldel Number

Output

Tol

R&N

Effi

Power

DR-30-5

5V，0.0~3A

±1%

80mV

74%

50W

DR-30-12

12V,0.0~2.0A

±1%

120mV

81%

50W

DR-30-15

15V，0.0~2A

±1%

120mV

82%

25W

DR-30-24

24V，0.0~1.5A

±1%

150mV

83%

30W

Universal AC input / Full range

nstalled on Din Rail TS35/7 5 or 15

Protections: Short circuit /Over voltage/Over load

Approvals：CE

LED showing the work of state

Cooling by free air convection

100% full load burn-in test

2 years warranty

AC Input voltage range：85~264VAC,47-63Hz,120~370VDC

AC inrush current: Cold start. 27A at 115VAC36Aat 230VAC

Dc adjustment range± 10% rated output voltage

Over load protection：105%-150% rated output voltage

Over voltage protection：115%~135% rated output voltage

Withstand voltage：1/P：3KVAC、1/P-FG：1.5KVAC

Working temperature：10℃~60<℃

Connection：1P：2 poles – O/P 4poles screw DIN terminal

Packing： 0.27kg/ pc 8pcs/16.5kg/1.02CUFT
