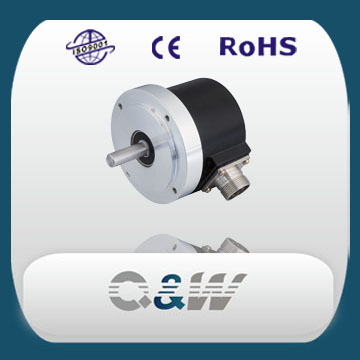

SP70/8 Series
SP70/8 Series
1.Fuction and use
-Outer diameter is 70, thinkness is only 54mm, axes diameter is 8mm.
-Economization type, steady capability strong interfrerence resisit.
-Many output circuit can select, out from is socket side out. and back out.
-Apply for heavy load and badly working enviroment such as numercial control machine tool and so on.
2.Type instruction
|
SP |
70 |
/ |
8 |
- |
1200 |
BZ |
- |
05 |
F |
C |
7 |
|
Basis type |
Main diameter 70mm |
|
axes diameter 8mm |
|
pulse count |
two-phase with positive base point |
|
power voltage: DC+5V |
Out circuit form F:Push-pull output |
Out form C: Sacket side out |
7 core socket |
Pusle/ revolution (note: the plastic code plate with vibration resist and inrush-resist, metal code wheel with high temperture resist, and glass code wheel with high precisiom) :
10 20 30 50 60 100 120 125 150 180 200 250 256 300 360 400 500 512 600 720 800 900 1000 1024 1200 1250 1500 1800 200 2048 2400 2500 3000 3600 4000 4096 4500 4800 5000 5400 or according customer request.
3.Electric parameter
|
Output circuit |
Driver L, H |
C, E, F |
Driver T |
|
Power voltage |
+5v ±5% |
+5V or +8V~30V |
+5V or +8V~30V |
|
Current consumption |
≤150mA |
≤60mA |
≤150mA |
|
Allowable load |
20mA |
30mA |
20mA |
|
Signal high waveform |
≥2.5V |
≥VCC*70%V |
≥VCC*70%V |
|
Signal low waveform |
≤0.5V |
≤0.5V |
≤0.5V |
|
Rise / fall time |
≤100ns |
≤1us |
≤100ns |
|
Response frequency |
150KHz |
150KHz |
150KHz |
4. Machine parameter
|
Radial load |
≤40N |
|
Axial load |
≤20N |
|
Start torque |
≤4*10-3N.m |
|
Tiptop rotate speed |
6000r/min |
|
Running inertia |
40g/cm² |
|
Allowable acceleration |
1*104rad/S² |
|
Weight |
About 0.45kg |
5.Enviroment parameter
|
Concussion resist |
1000m/S²， 6ms |
|
Vibration resist |
100m/s²，10~200HZ |
|
Working temperature |
20°C ~ 50°C |
|
Storing temperature |
-20°C~ + 80°C |
|
Relatively humidity |
≤RH85% No incing |
|
Protect grade |
IP50 |
6.Wire List
|
Output signal |
+V |
0V |
SIG A |
SIG B |
SIG Z |
SIG A |
SIG B |
SIG Z |
G |
|
|
CEF Type |
Cable color |
red |
black |
green |
white |
yellow |
- |
- |
-
|
Copper screen |
|
Seven core socket |
1 |
4 |
3 |
5 |
2 |
|
|
|
7 |
|
|
LHT Type |
Cable color |
red |
black |
green |
white |
yellow |
brown |
grey |
orange |
Copper screen |
|
Nine core socket |
1 |
4 |
5 |
3 |
2 |
7 |
6 |
8 |
9 |
|
|
Ten core socket |
1 |
4 |
5 |
3 |
2 |
7 |
6 |
8 |
10 |
|
Cautions: (1) signals connect according to the cable color in the list, shield line had connected with encoder shell actual connection connect by encoder mark.
(2) stardard length of output cable is 1m, the longest could extend to 50m.
(3) According to customers' demand, also could select other aviation socket, such as quick-drawing socket YZM-10 etc.
