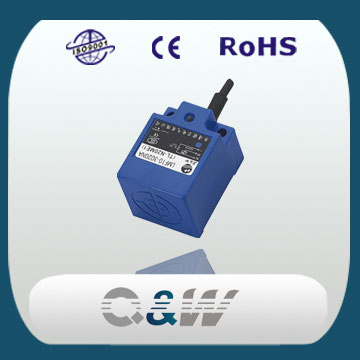

XMF10 inductive linear proximity sensor

Outward appearance code

XMF10

Detectable object

metal

Detection distance

FLush type:15mm

Non-fulsh:20mm

Model avalible

Current type

XMF10-3015PMI

XMF10-3020PMI

Voltage type

XMF10-3015PMU

XMF10-3020PMU

Voltage range

15~30VDC

Consumption

At the time of detection

≤200mA…＜4mA

At the time of non-detection

≤20mA

Loading resistance

Current type

0~300Ω

Voltage type

≥2.2KΩ

Output

Current type

4-20mA

Voltage type

0-5V/ 0-10V

Allowable voltage undulation

≤5%

Output signal

PNP simulation

Linear error

±5%

Ambient tempertaure

-10°C~+70°C

Shell ,material

Plastic.metal

Protection grade

IP54
