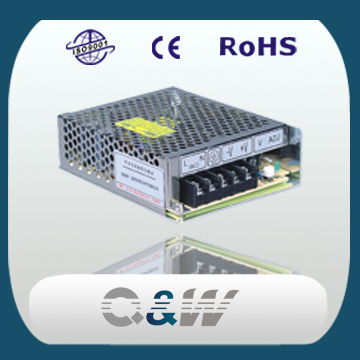

30W Two Group

Classification: Switching Power Supply - S Series - Two Group







  •  model number  output  tol  R&N  Effi
     D-30A  5v,0.5~4.0A  ±2％  50mV  72％
       12V,0.1A  ±3，-71％  100mV
     D-30B  5v,0.5~2.0A  ±2％  50mV  74％
       24v,0.0~1.0A  ±3，-5％ 100mV
    AC input range selectable by switch
  • Protections:Short circuit/Over load
  • Cooling by free air converction
  • 100％ full load burn-in test
  • Low cost,high reliability
  • 2year warranty
  • AC input voltage range85~132VAC ,170~264VAC ,47~63HZ;selectabe by switch
  • AC inrush current :Cold start,18A at 115VAC 36Aat 230vac
  • Dcadjustment range:±10％ rated output voltage
  • Over load protection :105％~150％ fold back current limiting,auto-recovery
  • Setup,rise ,hold up time:200ms ,100ms 30ms at full load and 230VAC
  • Withstand voltage :i/p-o/p:1.5KVAC,O/P-fG:0.5kvac,1minute
  • Working temperatuer:-10℃~﹢60℃，20％~90％RH
  • Safety standards:Design refer to UI1012
  • EMC standards:Design refer to FCC part 15
  • Connection:5p/9.5mm pitch terminal block
  • Packing:0.41kg;45pcs/19.5kg/1.2CUFT
